on video Simple Powerful Inverter For TV,Light,Fan...Simple Powerful Inverter Circuit..

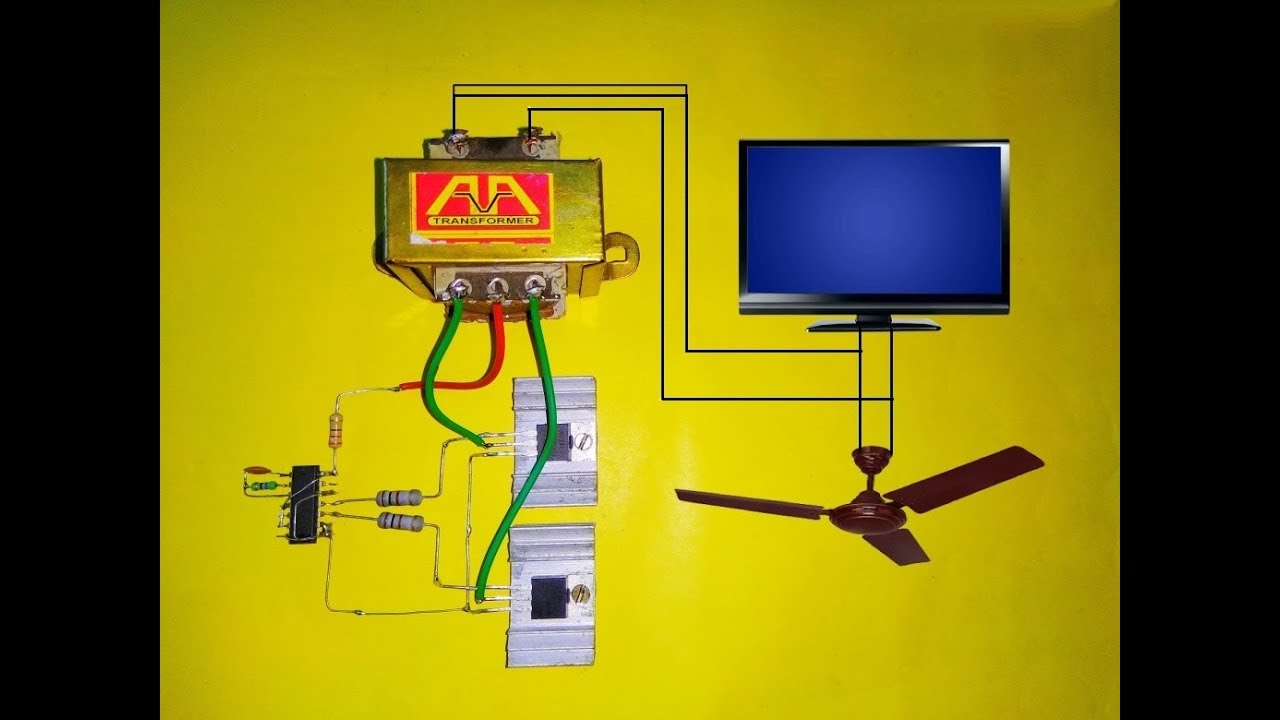

in this video I will show you how to make a Simple Powerful Inverter For TV,Light,Fan...Simple Powerful Inverter Circuit.. it is a simple circuit project and you can easily make this simple powerful 12 volt inverter circuit at your home..in this circuit we will use a 4047 ic and some simple components for generating ac from dc current..it is a dc to ac converter circuit..Friends this inverter circuit will run by 12v dc power supply..Friends it is a pretty cool portable power inverter which you can easily make.. at first make the circuit board then connect the circuit board with a 12-0-12 transformer..After that connect 12 volt power supply with this circuit board then you will get 220 volt ac from the transformer primary coil..Friends if you want more watt then you will have to use a high amp transformer... it is a good science project and you can easily make this simple circuit project at your home.. in this video I will show you the complete process of making a simple and powerful inverter 12v to 220v step by step..the simple inverter circuit diagram or you can call it a simple dc to ac converter circuit diagram is in the video please see the circuit diagram..
