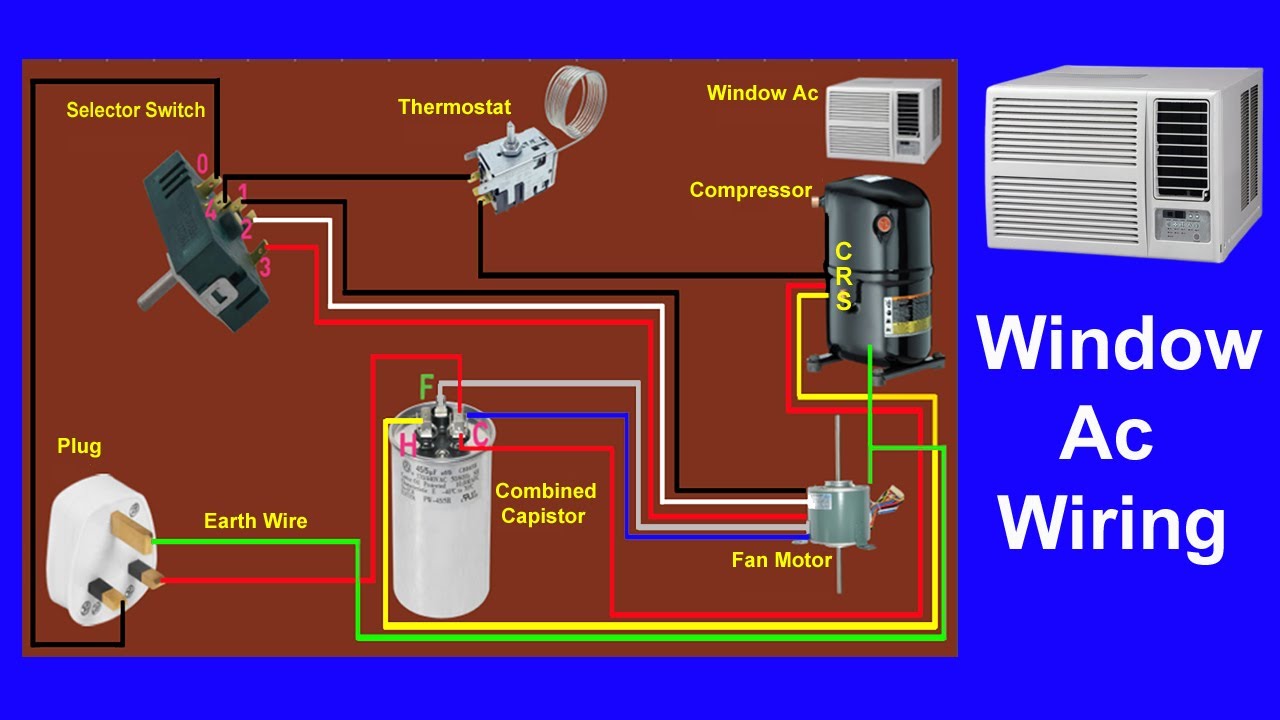

on video Window AC wiring connection |Air conditioner Wiring Diagram | ac connection | electrical technician
in this video, you will learn how to do Air conditioner wiring step by step
In ac, we do two types of wiring
1. PSC wiring (PSC means Permanent split capacitor )
2. CSR wiring ( CSR means Capacitor start Capacitor Run )
in this video, I will explain how to do wiring by PSC Method
What is air conditioner and how it works?
The air conditioner in a central heating and cooling system provides cool air through ductwork inside your home, by providing a process that draws out the warm air inside, removing its heat. ... From that point, the condenser or outdoor unit then turns the refrigerant vapor back into a liquid, removing any heat.
Q. 5 MAIN PARTS OF AN AIR CONDITIONER AND WHAT THEY DO
Ans - 1. Refrigerant
Refrigerant (also known as coolant or by its brand name Freon®) is a special fluid that is vital to cooling and freezing technology. It operates on a closed loop and carries heat from the inside of your building to the outside. You can think of the refrigerant as the messenger/traveler. We use refrigerant because it changes states from liquid to vapor at convenient temperatures for the refrigeration cycle.
2. Compressor
The job of the compressor is to pressurize the refrigerant, thus raising its temperature. Due to the combined gas law (a combination of Boyle’s Law, Charles’ Law, and Gay-Lussac’s Law), which states that if pressure increases so does its temperature, when you compress the refrigerant, it will heat up. It does this by squeezing the gas very tightly together.
3. Condenser Coil
The condenser coil is in the outdoor air conditioning unit. It receives the high pressure, high temperature refrigerant from the compressor. You can think of it as the opposite of the evaporator coil. Whereas the evaporator coils contain cold refrigerant, the condenser coils contain hot refrigerant.
4. Expansion Valve
When the refrigerant leaves the condenser in its liquid state, it has dispersed heat, but it is still too hot to enter the evaporator coils. Before the refrigerant passes to the evaporator coils, it must be cooled down. This is where the expansion valve (also known as a metering device) comes in, normally a thermostatic expansion valve.
5. Evaporator Coil
Evaporator coils are very important to an air conditioner. It’s where the air conditioner actually picks up the heat from inside your home.
